Aviation Surface Observations

How to read the station plots on the Surface Obs maps: temperature, dew point, wind, sky cover, altimeter, visibility and the lowest cloud layer.

The Surface Obs maps plot the latest hourly observation from selected airports across the United States. Each station is drawn as a small cluster of numbers around a wind barb, so you can take in the weather over a whole region at a glance.

On weatherTAP: the maps are on the Aviation page under Surface Obs, one for each region: Northeast, Southeast, Northcentral, Southcentral, Northwest and Southwest. They are redrawn every hour from the surface observations (METARs).

Reading the station plot

A white wind barb shows the sky cover, wind direction and wind speed. The yellow text around it gives the rest of the observation.

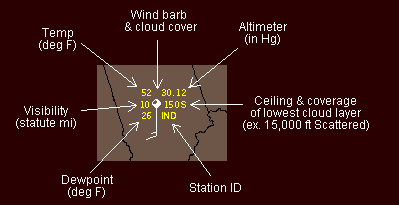

A station plot for Indianapolis with each value labeled
A station plot for Indianapolis, Indiana (IND) on a late fall day.
PositionValueIn the example
Upper leftTemperature, °F52
Lower leftDew point, °F26
LeftVisibility, statute miles10
CenterSky cover (the circle) and wind (the barb)Broken, wind from the south at 15 knots
Upper rightAltimeter setting, inches of mercury30.12
RightHeight and amount of the lowest cloud layer150S: scattered at 15,000 feet
Lower rightStation identifierIND

The lowest cloud layer

The group to the right of the barb, 150S in the example, describes the lowest layer of cloud the station reported. The three digits are the height of its base in hundreds of feet. The letter that follows is the amount of sky that layer covers.

LetterCoverage
CLRClear
FFew
SScattered
BBroken
OOvercast

The circle at the center of the plot shows the total sky cover, counting every layer. That is why the two can disagree. In the example the lowest layer is only scattered, at 15,000 feet, but the circle shows a broken sky, so there is a broken layer somewhere above it.

This is not always a ceiling. A ceiling is the lowest broken or overcast layer. Few and scattered layers are not a ceiling, but the map plots the height of the lowest layer whatever its coverage. For ceilings and flight categories, use the Weather Depiction chart or the METAR itself.
